RB-M Tactical
The Response Boat - Medium Tactical was developed as a commercial variant to the USCG Response Boat - Medium (RB-M). This high speed, high performance boat has become a favorite with foreign militaries around the world and elite law enforcement thanks to its tactical handling and reliability. It can be customized to meet mission-specific options.
The RB-M Tactical for the Kingdom of Bahrain shown in the video below was fabricated with high temp resistant aluminum and outfitted with an Arabian Gulf hot weather package that includes a 92000 BTU HVAC system, thermal insulation and an aft deck GRP canopy.

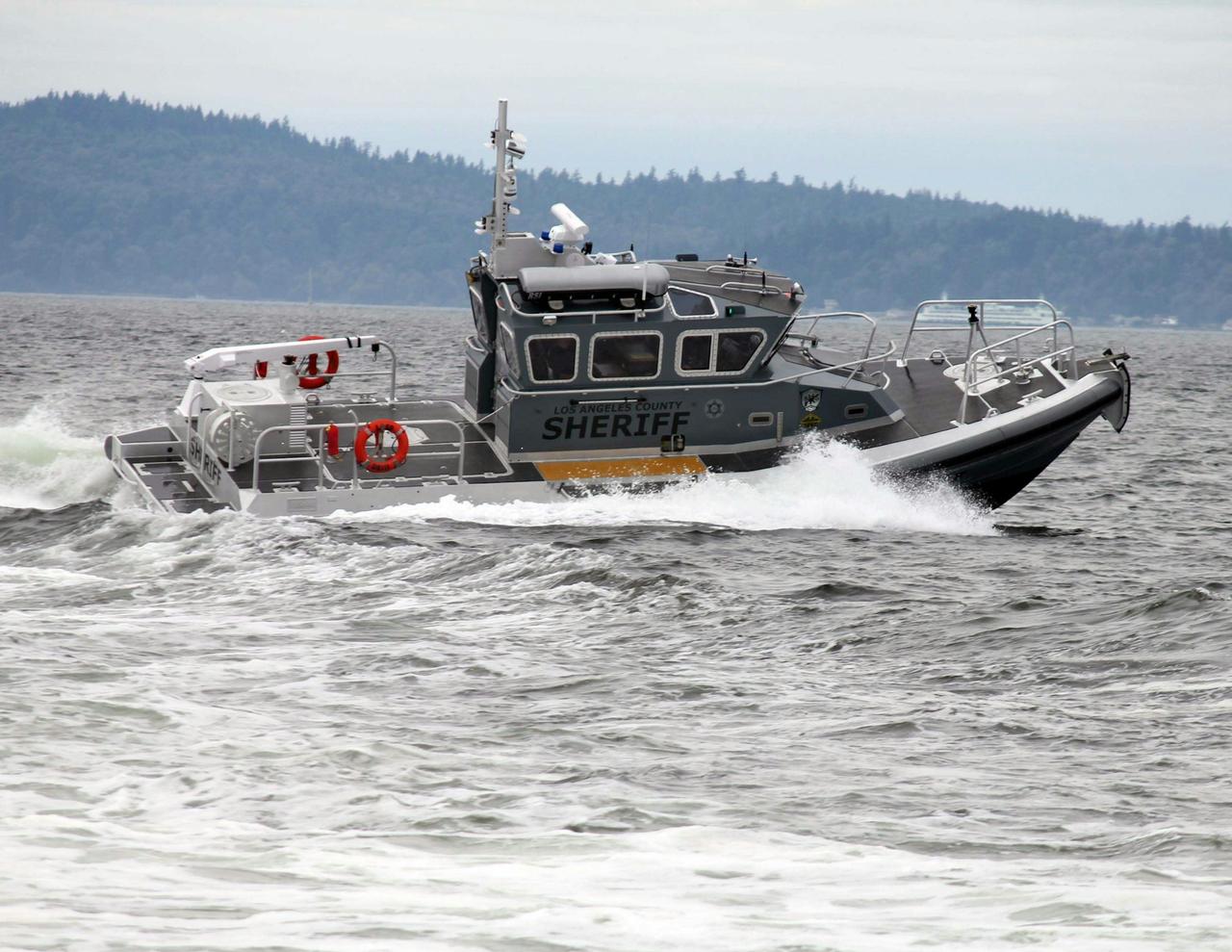

The L.A. County Sheriff’s boat was customized with a roof mounted RS-700 Gamma/Neutron Radiation Detection System to achieve its mission requirements to quickly and accurately measure and locate natural and man-made radioactive elements or CBRNE (Chemical, Biological, Radiological, Nuclear & Explosives).
Principal Characteristics
Type
RB-M Tactical
Designer
Camarc Design
Length (Overall)
44’11" (13.6m
Beam (Overall)
14’7” (4.4m)
Draft
3’0” (.9m)
Fuel Capacity
495 gal (1874L)
Top Speed (Approx)
>40 knots
Engines
(2) MTU Series 60, 825bhp each
Transmission
Twin Disc MG5114SC
Propulsors
Rolls Royce Kamewa FF375S Waterjets
GENSET
Kohler 9kW
Bottom Plate
0.25” (.00635m)
Side Plate
0.19” (.00483m)
Deck Plate
0.16” (.00406m)
Other
- All-Aluminum Construction
- Self-Righting Capabilities
- Gilman Ionomer Foam Collar
- Stidd shock mitigating seats
- (2) Rescue Zones
- Portable Pump
- Infrared Night Vision
- Towline Reel
- (2) Gun Mounts
- Furuno Navnet integrated navigation system
- Optional hot weather package available
Response Boat
Medium Tactical
